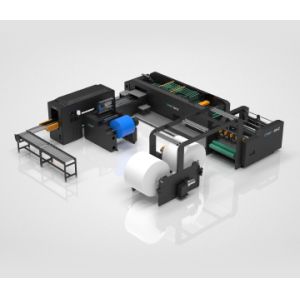

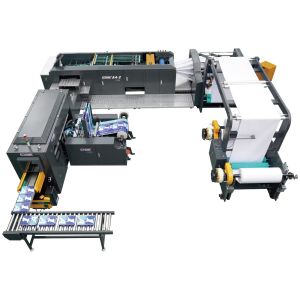

CHM-A4-2. A compact space saving, high efficiency A4 copy paper sheeting and packaging production line adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies. Capable of fully automatic ream and box wrapping.
This is samll A4 copy paper cutting and packaging machine production line adopts the most advanced Twin Rotary Knife Synchronize Sheeting technologies.2 rolls and 4 pockets, Output 10 reams/min, occupies only 8*9 meters, this machine is more suitable for users with a monthly production capacity of 200-300 tons.
| Parameter | Details |
|---|---|
| Model | CHM-A4-2 |
| Paper Width | Gross width 850 mm, net width 840 mm |
| Cutting Numbers | 2 cutting-A4 (210 mm width) |
| Paper Roll's Diameter | Max Ф1400 mm, Min Ф600 mm |
| Paper Core's Diameter | 3" (76.2 mm) or according to client demand |
| Packing Paper Grade | High-grade copy paper, high-grade office paper, high-grade free wood paper, etc. |
| Paper Weight | 60-100 g/m² |
| Sheet Length | 297 mm (specially designed for A4 paper) |
| Ream Amount | 500 sheets Max, Height: 45-55 mm |
| Production Speed | Max 0-250 m/min (depends on paper quality) |
| Max Numbers of Cutting | Max 841 cuts/min |
| Output of the Ream | Max 13 reams/min |
| Load of Cutting | 100 g/m² (1×100 g/m²) |
| Cutting Accuracy | ±0.2 mm |
| Cutting Condition | No speed variation, no breaks, cut all paper at once with eligible paper |
| Main Power Supply | 3*380 V / 50 Hz |
| Voltage | 220 V AC / 24 V DC |
| Power | 23 KW |
| Air Consumption | 200 NL/min |
| Air Pressure | 6 bar |
| Edge Cutting | 5~15 mm * 2 |
| Safety Standard | Designed according to China's safety standards |
1)Machine Type Each machine table can take 2 sets of shaftless paper rack.
2)Diameter of the paper roll Max. Ф1400mm
3)Width of the paper roll Max. Ф850mm
4)Paper rack’s material Steel
5)Clutch device Pneumatic Braker and control
6)Clip arm’s adjustment Manual adjust by oil pressure
7)Paper core demanding 3”(76.2mm) air expansion shaft chuck
Type: Automatic tension control system
1) When the paper through inductor, that automatic feedback to the PLC control system to increase brake load, increase or reduce the tension that control the paper tension automatically.
Type: High precision cutting knife system
1) Upper and lower knives are rotary make the cutting accuracy is very precision.
2) Anti-curve device Include one set of square bar and steel wheel. When the curve paper through paper edge unit that can adjust the paper square and let it flat.
3) 5 sets slitting knives Upper slitting knife take by air pressure and spring.Lower knife connect with bear drive (the diameter is Ф180mm ) and move with spring. The upper and lower round knife is made by SKH.The lower slitting knife (diameter is Ф202mm) and drive with in-phase belts. The lower slitting knife is 5 groups, each group have two knife edge.
4) Paper feeding wheel
Upper wheel:Ф200*550mm (rubber covered)
Lower wheel:Ф400*550mm (anti-glide)
5) Cutting knife group
Upper cutting knife:1 pcs 550mm
Lower cutting knife:1 pcs 550mm
6) Driving group(High precision bear and belt drive)
7) Main driving motor group
Type:Transporting system
1) Transporting by level and overlapping device
2) High speed transporting belt and press wheel. Upper and lower transport belt corresponding pressure paper, automatic tension and close system.
3) Static removal device(Include static removal bar and Negative ion generator)
Type: Paper collecting system
1) Automatic device for paper stack up and down. 2) Jogging device and clap paper tidy. Control by air vat, when design sheet, the cylinder up and down by cut paper bar. After transport paper to belt, transport to the pack table cross.
| Parameter | Details |
|---|---|
| Model | CHM-A4B |
| Paper Width | Gross width: 310 mm; Net width: 297 mm |
| Ream Packing Height | Max 55 mm; Min 45 mm |
| Packing Roll Diameter | Max 1000 mm; Min 200 mm |
| Packing Roll Width | 560 mm |
| Packing Sheets Weight | 70-100 g/m² |
| Packing Sheets Grade | High-grade copy paper, high-grade office paper, high-grade offset paper, etc. |
| Design Speed | Max 40 reams/min |
| Operation Speed | Max 35 reams/min |
| Packing Condition | No speed variations, no breaks, cut all paper at once with qualified packing paper |
| Driving | AC Servo Precision Control |
| Main Power Supply | 3*380 V / 50 Hz (or as required) |
| Voltage | 220 V AC / 24 V DC (or as required) |
| Power | 18 KW |
| Compressing Air Consumption | 300 NL/min |
| Air Compressor | 6 bar |
Included the following function: speed control, paper count, paper ream output, fault alarm and automatic stop(Indicate fault code shown on the panel screen).
