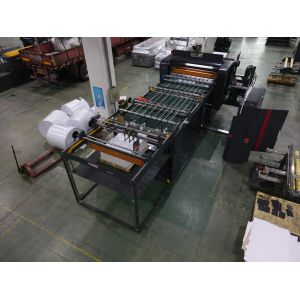

Ac Servo drive high precision double rotary sheet cutter paper machine adopt advanced technology from Taiwan and Britain, AC servo motor drive, cutting speed is fast and stable; German precision cutting knife, high cutting precision; Light touch computer interface control, easy to operate, product technology, performance comparable to similar foreign products, is currently paper factory and printing factory widely used in paper processing machinery.INK JET,Automatic pallet change system,Automatic paper splicing system.Achieve full automation, saving 70% labor.
High Precision Synchronize - fly Sheeter features fibre-less and clean cuts with high dimensional precisions. Best for board paper, art paper, kraft paper and packing paper or board etc.
| CHM Type | CHM-SGT1400 | CHM-SGT1700 | CHM-SGT1900 |
|---|---|---|---|
| Cutting Way | Upper and lower rotary cutting mechanism | Upper and lower rotary cutting mechanism | Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper | 200-1000GSM | 200-1000GSM | 200-1000GSM |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Max cutting speed | 300sheets/min | 300sheets/min | 300sheets/min |
| Max.cutting meter speed | 300m/min | 300m/min | 300m/min |
| Cutting length range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max scroll diameter | 1800mm | 1800mm | 1800mm |
| Stacking height Of paperboard | 1300mm | 1300mm | 1300mm |
| Max.paper-cutting width | 1400mm | 1700mm | 1900mm |
| Weight | 15000kg | 17000kg | 18400kg |
| Dimension(LxWxH) | 14453mm*4675mm*2350mm | 14453mm*4975mm*2350mm | 14453mm*5175mm*2350mm |
1)Style
Adjustable slitting knife and exhaust tube for waste edge on both sides.
2)Top slitter
Adjustable up or down, slitting width can be adjusted by manual.
3)Bottom slitter
The slitter are fixed, slitting width can be adjusted by manual.
4)Windmill: driven by 5.5kw motor
5)Type-Y collecting pipe for waste edge.
1)Top and bottom Tool Apron Adopting cutting way of advanced, so as to decrease noise and load and prolong life of knife.
2)Main driving roller: grainy surface, controlled by the air Pressure so as to grip the paper.
1)Type:
Anti-static bar, can eliminate static in the sheets.
1)Type:
Horizontal conveying with multi-stage so as to counting and piling conveniently(high efficiency dust collecting equipments).
2)The first conveying stage
To separate cutting paper quickly.
3)The Second conveying stage To conveyer paper like shape of tile with slow speed, single or linkage acting control.
1)Type:
Insert after counting precisely
2)Function
A,After inputting number of paper pieces in HMI, then it can work according to requirements.
B,Refill defective product
1)AC servo motor for reclaiming blade.
2)AC motor for conveyer paper.
3)Inverter motor for the secondly conveyer strap.
4)AC motor for up and down of Stacker.
5)AC motor for front jogger.
6)AC motor for windmill of collecting waste edge.
7)AC motor for unwind stand.
Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer automatically.
Precision sensing nozzle which easily available and sensitive Fast detects various web lines for EPC system.
FAQ
1.Our cooperative partner
paper mill:Sun Paper,ND Paper ,Double A,APP, Onhing Paper,MYS,.Chenmingpaper.JHE paper ,C&CJOINTPRINTING CO.(HK)LID etc.
2.What kind of quality service do you offer to me?
All the parts of commodity will be ensured to be used for one year
CHM Machinery will maintain them for life.
Outside the warranty period, the Seller shall provide spare parts and services at a preferential price as soon as possible.
3. How do we guarantee quality?
Always pre-production samples before mass production;
Always final inspection before shipment;
4. What can you buy from us?
Paper sheeter machine, paper cutter, paper sheet machine, copy paper and packaging machine, cut-to-size paper and packaging machine 4. Why should you buy from us instead of other suppliers?
CHM is the only Hong Kong brand sheet machinery producer in China.
With the second largest facility in the world, nearly 140.000 square meters.
As a sheet solution expert, with the best R&D team and the highest number of patents, more than 110 items.
