Dongguan Chun Hing Mechanical Technology Co., Ltd.
One-stop paper slitting solution provider The first manufacturer to introduce the concept of machine life cycle service
Add to Cart

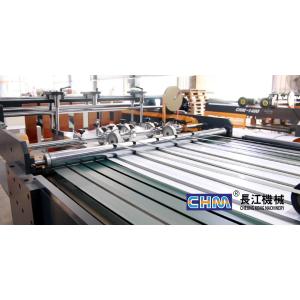

A servo-driven high speed, high precision and high efficiency sheeter. Capable of handling a wide range of paper types including board paper, art paper, and kraft paper. Widely used in printing, packaging, and paper supply industries.
| Attribute | Specification |
|---|---|
| Model | CHM-1100 |
| Machine Weight | 2500kg |
| Type of Cutting | Top blade rotary, bottom blade fixed |
| Weight of Paper | 60-500 GSM |
| Reel Diameter | Max 1500mm (59") |
| Finished Width | Max 1100mm (43") |
| Finished Sheet Length | Min. 450 - Max. 1300 mm |
| Number of Rolls Cutting | 2 rolls |
| Cutting Accuracy | ±0.5mm (L < 1000mm) ±0.1% (L ≥ 1000mm) |
| Max Speed of Cutting | 300 cuts/min |
| Total Power | 22 KW |
| Voltage | AC 380V/220V x 50Hz |
